PU1208-100M
YUYAO ZHONGQIN PNEUMATIC TUBING
ZQ04
PRODUCTS DESCRIPTION
1.Made of 100% brand-new PU raw material, with smooth and polished surface, with small bending radius in very good flexibility.

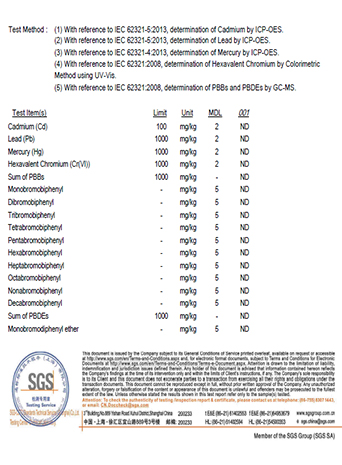

2.ROSH, SGS certified. No softener included.
3.With good oxygen resistance, ozone resistance and aging resistance.
4.operating temperature: -30℃~70℃, service life: 5+ years
5.Online diameter control system, diameter tolerance within ±0.2mm.
6.High transparency of the transparent tubes, the flowing status of the medium clearly visible.
7.Plastic pigments with very good weather-resistance, makes the colored tube bright, standard, and with good fastness even after long-time usage.
8.Widely used on all kinds of pneumatic tools, pneumatic automated machines, air compressors, and the connection pneumatic assembly etc.
Product Name | Flexible PU TUBE, PU HOSE, PU PIPE |
Brand | ZOQN |
Material | 100% NEW TPU |
Specification | 16*12mm |
Length | 200M/Roll, 100M/Roll |
Features | Flexible, Durable, ECO-friendly |
Hardness | 80A~98A |
Color | Transparent, Orange, Blue, Black, or customized. |
Certificate | ISO9001, SGS testing report. |
Service Life | 5+ years |
Production Capacity | 50000 meters/day |
Attentions
1.Be careful when the ambient temperature or the fluid temperature is over 60℃.
2.Be careful when the ambient or the fluid is with the strong corrosivity such as strong acid, strong base and strong solvent. The possibility of the tube explosion exists in the severe corrosion environment.
3.Long time storage in the humid environment causes cracking because of the hydrolysis.
Model | Inner Diameter | Outer Diameter | Length | Working pressure | Bursting pressure | Bending Radius | Working tempreture |
mm | mm | m | Mpa(20℃) | Mpa(20℃) | mm | ℃ | |
PU0302-200M | 2 | 3 | 200 | 1.0 | 3.0 | 15 | -30~70 |
PU0425-200M | 2.5 | 4 | 200 | 1.0 | 3.5 | 20 | |
PU0503-200M | 3 | 5 | 200 | 1.0 | 34 | 25 | |
PU0503-200M | 4 | 6 | 200 | 1.0 | 3.3 | 25 | |
PU0805-100M | 5 | 8 | 100 | 1.0 | 3.6 | 30 | |
PU0855-100M | 5.5 | 8 | 100 | 1.0 | 3.0 | 30 | |
PU1065-100M | 6.5 | 10 | 100 | 1.0 | 3.1 | 35 | |
PU1208-100M | 8 | 12 | 100 | 1.0 | 3.0 | 35 | |
PU1410-100M | 10 | 14 | 100 | 0.8 | 2.8 | 45 | |
PU1612-100M | 12 | 16 | 100 | 0..8 | 2.7 | 50 | |
PU1/8"-200M | 2 | 3.2 | 200 | 1.0 | 3.1 | 15 | |
PU5/32"-200M | 2.5 | 3.97 | 200 | 1.0 | 3.5 | 20 | |
PU1/4"-200M | 4.35 | 6.35 | 200 | 1.0 | 3.0 | 25 | |
PU5/16"-100M | 5 | 7.94 | 100 | 1.0 | 3.6 | 30 | |
PU3/8"-100M | 6.5 | 9.62 | 100 | 1.0 | 3.0 | 30 | |
PU1/2"-100M | 9.6 | 12.6 | 100 | 0.8 | 2.7 | 40 |
PRODUCTS DESCRIPTION
1.Made of 100% brand-new PU raw material, with smooth and polished surface, with small bending radius in very good flexibility.
2.ROSH, SGS certified. No softener included.
3.With good oxygen resistance, ozone resistance and aging resistance.
4.operating temperature: -30℃~70℃, service life: 5+ years
5.Online diameter control system, diameter tolerance within ±0.2mm.
6.High transparency of the transparent tubes, the flowing status of the medium clearly visible.
7.Plastic pigments with very good weather-resistance, makes the colored tube bright, standard, and with good fastness even after long-time usage.
8.Widely used on all kinds of pneumatic tools, pneumatic automated machines, air compressors, and the connection pneumatic assembly etc.
Product Name | Flexible PU TUBE, PU HOSE, PU PIPE |
Brand | ZOQN |
Material | 100% NEW TPU |
Specification | 16*12mm |
Length | 200M/Roll, 100M/Roll |
Features | Flexible, Durable, ECO-friendly |
Hardness | 80A~98A |
Color | Transparent, Orange, Blue, Black, or customized. |
Certificate | ISO9001, SGS testing report. |
Service Life | 5+ years |
Production Capacity | 50000 meters/day |
Attentions
1.Be careful when the ambient temperature or the fluid temperature is over 60℃.
2.Be careful when the ambient or the fluid is with the strong corrosivity such as strong acid, strong base and strong solvent. The possibility of the tube explosion exists in the severe corrosion environment.
3.Long time storage in the humid environment causes cracking because of the hydrolysis.
Model | Inner Diameter | Outer Diameter | Length | Working pressure | Bursting pressure | Bending Radius | Working tempreture |
mm | mm | m | Mpa(20℃) | Mpa(20℃) | mm | ℃ | |
PU0302-200M | 2 | 3 | 200 | 1.0 | 3.0 | 15 | -30~70 |
PU0425-200M | 2.5 | 4 | 200 | 1.0 | 3.5 | 20 | |
PU0503-200M | 3 | 5 | 200 | 1.0 | 34 | 25 | |
PU0503-200M | 4 | 6 | 200 | 1.0 | 3.3 | 25 | |
PU0805-100M | 5 | 8 | 100 | 1.0 | 3.6 | 30 | |
PU0855-100M | 5.5 | 8 | 100 | 1.0 | 3.0 | 30 | |
PU1065-100M | 6.5 | 10 | 100 | 1.0 | 3.1 | 35 | |
PU1208-100M | 8 | 12 | 100 | 1.0 | 3.0 | 35 | |
PU1410-100M | 10 | 14 | 100 | 0.8 | 2.8 | 45 | |
PU1612-100M | 12 | 16 | 100 | 0..8 | 2.7 | 50 | |
PU1/8"-200M | 2 | 3.2 | 200 | 1.0 | 3.1 | 15 | |
PU5/32"-200M | 2.5 | 3.97 | 200 | 1.0 | 3.5 | 20 | |
PU1/4"-200M | 4.35 | 6.35 | 200 | 1.0 | 3.0 | 25 | |
PU5/16"-100M | 5 | 7.94 | 100 | 1.0 | 3.6 | 30 | |
PU3/8"-100M | 6.5 | 9.62 | 100 | 1.0 | 3.0 | 30 | |
PU1/2"-100M | 9.6 | 12.6 | 100 | 0.8 | 2.7 | 40 |
Product Advantages
Advantage-1
On-line tubing diameter control system, ensure the size accuracy.
Advantage-2
100% brand-new raw material, makes the tubing in good quality with a long service life. Smooth and glazed, super flexible with small bending radius, with high working pressure and burst pressure.
Advantage-3
ISO9001 quality certification system and SGS testing report comply with environmental requirements.
Product Advantages
Advantage-1
On-line tubing diameter control system, ensure the size accuracy.
Advantage-2
100% brand-new raw material, makes the tubing in good quality with a long service life. Smooth and glazed, super flexible with small bending radius, with high working pressure and burst pressure.
Advantage-3
ISO9001 quality certification system and SGS testing report comply with environmental requirements.
Packaging Details:
1. Export Standard Packing, in export cartons.
2. Customized Packing is also available.
Delivery:
20-35 days after deposit received.
Packaging Details:
1. Export Standard Packing, in export cartons.
2. Customized Packing is also available.
Delivery:
20-35 days after deposit received.
Our after-sale service:
Our after-sale service:
1. Discount on late delivery
You will get a discount if your order cannot shipped on the delivery date which is promised.
2. Full or Partial Refund
if the products are not same as the confirmed samples, you can
A: Return the products.
B: Get a partial refund and keep the products.
Our after-sale service:
Our after-sale service:
1. Discount on late delivery
You will get a discount if your order cannot shipped on the delivery date which is promised.
2. Full or Partial Refund
if the products are not same as the confirmed samples, you can
A: Return the products.
B: Get a partial refund and keep the products.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we would like to offer the samples free of charge, but the freight cost you need to pay by yourself.
Q :What's your delivery time ?
A : It is based on the order quantity, normally our lead time is 20~35 days.
Q:What's your payment term ?
A : T/T, 30% deposit before production, balance before loading.
For big order with amount more than Usd30000, we accept L/C.
For trial order with small amount less than Usd1000, we accept Paypal or cash.
Q:Do you offer OEM service?
A : yes, we provide OEM service for our customers.
Q:Which markets do you sell already?
A : Japan, Indonesia, Middle East, USA, Australia etc.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we would like to offer the samples free of charge, but the freight cost you need to pay by yourself.
Q :What's your delivery time ?
A : It is based on the order quantity, normally our lead time is 20~35 days.
Q:What's your payment term ?
A : T/T, 30% deposit before production, balance before loading.
For big order with amount more than Usd30000, we accept L/C.
For trial order with small amount less than Usd1000, we accept Paypal or cash.
Q:Do you offer OEM service?
A : yes, we provide OEM service for our customers.
Q:Which markets do you sell already?
A : Japan, Indonesia, Middle East, USA, Australia etc.
